Bransdale Eco

  • 8 kW output
  • Solid Fuel
  • 6″ Flue top exit only
  • Suitable for 12mm hearth
  • Eco Design compliant & Smoke control approved
  • Clear skies level 5
  • Energy Rating of A
  • Up to 77.8% efficient
  • Tertiary air system for improved efficiency & lower emissions
  • Air wash system to keep the glass clear



The Bransdale Eco has the largest output of our current range and has a more traditional design with a cast iron door and two sets of spin wheels. Like all our stoves the body of the Bransdale Eco is made from British steel that is bent into shape creating an airtight design.



The two sets of spin wheels are used to regulate air flow into the stove offering great controllability. Boasting a large fire box that can fit a maximum log length of 440mm, the Bransdale Eco can output an impressive amount of heat while maintaining a good efficiency.



The Bransdale Eco is available with brass or stainless steel fittings and like all our stoves can be made in black or any of the colours from our current range .



Link to Brochure Page





Categories: , , , , ,

Description

Please note the Bransdale Eco is Not available with a logstore and is Not suitable for an external air kit.



The viewing area is 416mm wide x 261mm high.



Distances from Combustibles

The Bransdale Eco must have a minimum distance from any combustible materials of 750mm from the back of the stove , 650mm from the sides and 400mm above the stove.

Distances from Non-Combustibles

We recommend a minimum distance of 50mm behind, 150mm from the sides and 300mm above the stove to allow enough air circulation around the stove ensuring performance is not affected.



Efficiency & Emissions

  • 77.1% Efficient on Wood
  • 77.8% Efficient on Solid Fuel
  • Energy Class of A
  • Clear Skies level 5
  • Energy Efficiency Index 102%

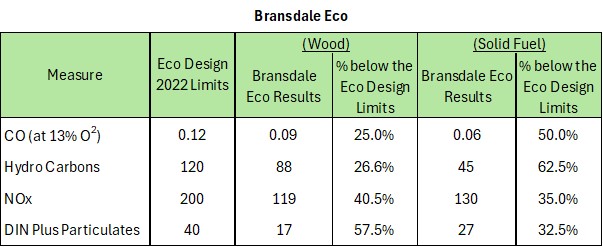

  • Emissions tested for Eco design:
    • CO Emissions – 0.09 (Wood) / 0.06 (Solid fuel) – Eco design limit is 0.12
    • Hydro carbon emissions – 88 (Wood) / 45 (solid fuel) – Eco design limit is 120
    • NOx emissions – 119 (Wood) / 130 (solid fuel) – Eco design limit is 200
    • DIN Plus particulates 17 (Wood) / 27 (solid fuel) – Eco design limit is 40

Bransdale Eco Installation & User Instructions

Download
