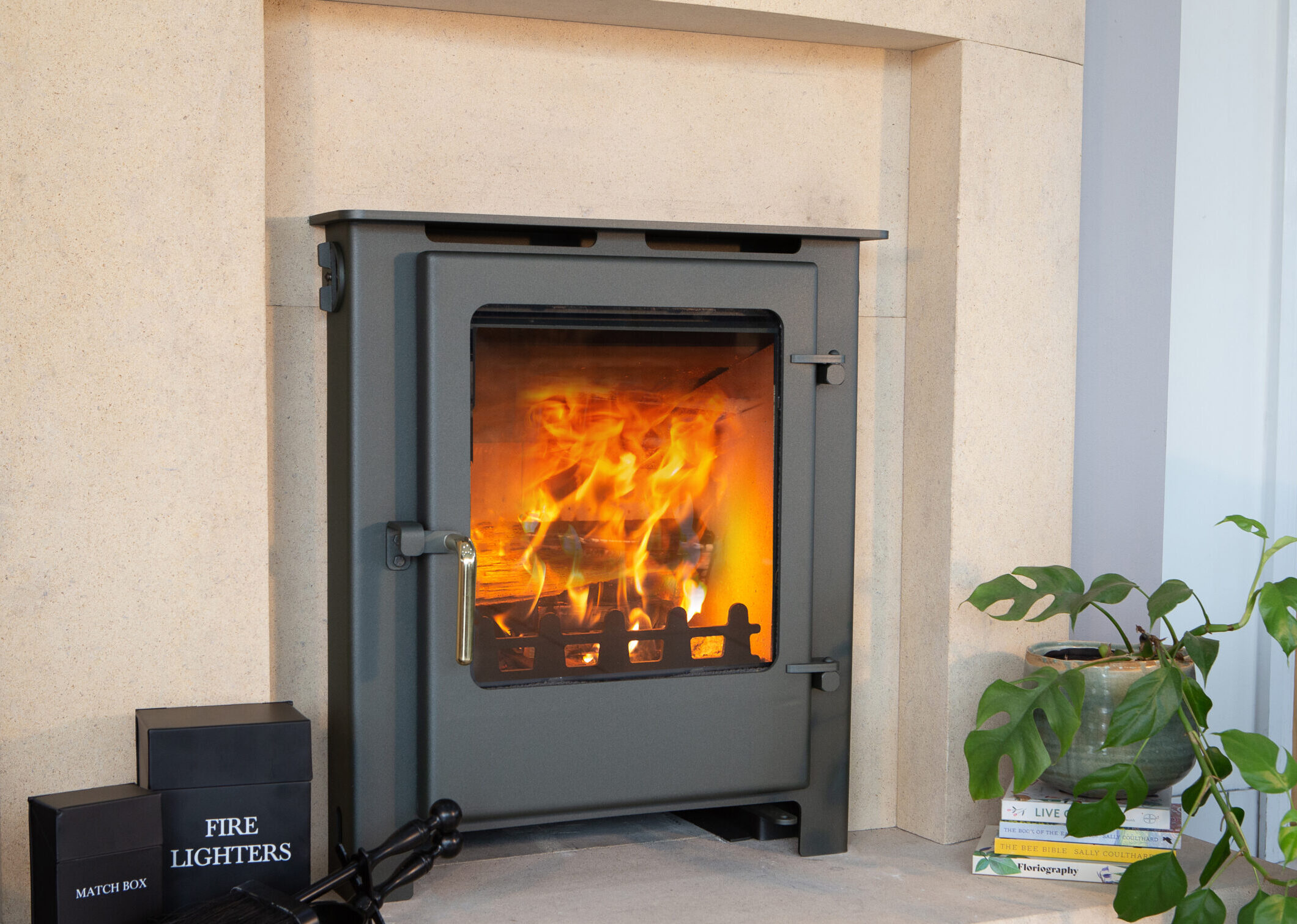

Rosedale Inset Eco Flat Door
Rosedale Inset Eco Flat Door - Image 2
Rosedale Inset Eco Flat Door - Image 3

Rosedale Inset Eco Flat Door

  • 5 kW Output
  • Solid Fuel
  • Suitable for a standard class 1 chimney or a 5″ adaptor to flue liner
  • Requires a constructional Hearth
  • Eco Design & Smoke control approved
  • clear skies level 5
  • Energy Rating of A
  • Efficiency of 80.2% (Solid fuel) & 78.5% (Wood)
  • Tertiary air system for improved efficiency & lower emissions
  • Air wash system to keep the glass clear

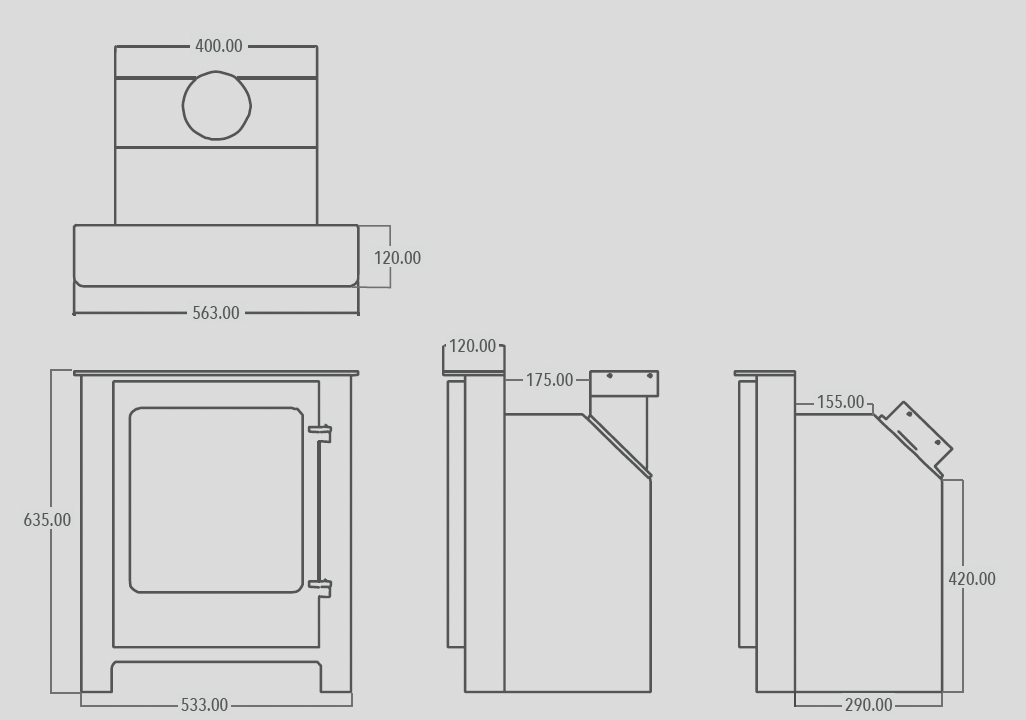

The Rosedale Eco is designed to fit into a standard fire opening with the chair brick removed (16″ / 18″ wide x 22″ high). The Rosedale Eco also has a convection system that brings warm air out through the vents above the door for additional heat.



The Rosedale Eco is easily controlled by a single discrete level below the door and the spin wheels on either side of the stove near the top. The lever pulls out to allow primary air into the stove when lighting a fire while the spin wheels control the amount of secondary air giving control over the fire once it’s established.



This is one of our cleanest burning & Eco friendly stoves beating the Eco Design limits by at least 50% on all measures.



The Rosedale Eco is available with a choice of Brass or Stainless steel fittings and like all our stoves is available in black as standard or any of our current range of colours.



Link to Brochure Page





Why not look at the bow door version of the Rosedale Eco as well?

Categories: , , , , , ,

Description

The viewing area is 317mm wide x 352mm high



Adaptors

The Rosedale can be fitted with either a standard or flat adaptor to connect to flue liner.



Distances from Combustibles

The Rosedale Eco must have a minimum distance from any combustible materials of 200mm from the sides and 350mm above the stove.



Efficiency & Emissions

  • 80.2% efficient on Solid fuel & 78.5% Efficient on Wood
  • Energy Class of A
  • Clear Skies level 5
  • Energy Efficiency Index 104%

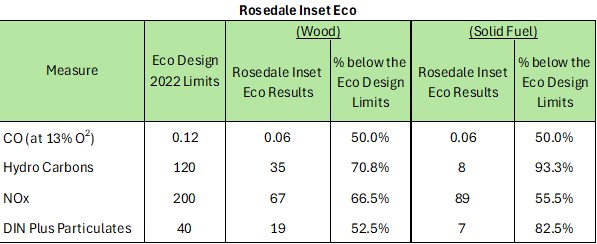

  • Emissions tested for Eco design:
    • CO Emissions – 0.06 (Wood) / 0.06 (Solid fuel) – Eco design limit is 0.12
    • Hydro carbon emissions – 35 (Wood) / 8 (Solid fuel) – Eco design limit is 120
    • NOx emissions – 67 (Wood) / 89 (Solid fuel) – Eco design limit is 200
    • DIN Plus particulates – 19 (Wood) / 7 (Solid fuel) – Eco design limit is 40



Rosedale Inset Eco Installation & User Instructions

Download
